AVer Document Camera M90UHD

M90UHD  -  See a World in a Grain of Sand

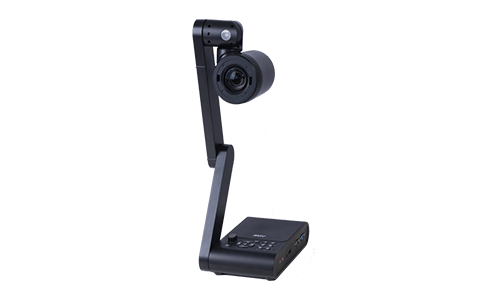

Mechanical Arm Visualizer (Document Camera)

The M90UHD is a visualizer with an impressive lineup of features that include a 13-megapixel camera, 4K imaging, and a transcendent 322X total zoom capacity. These characteristics help teachers demonstrate all types of materials in an extraordinarily vivid way. What’s more, instinctive function buttons, an extendable arm, and AVerTouch software allow teachers of any subject to create fantastic collaborations in next to no time.



The Only 322X Total Zoom

Equipped with a 14X optical and 23X digital zoom, the M90UHD’s amazing 322X total zoom buries the competition. Every student—even the ones in the back row—can enjoy a wonderful learning journey without missing a single detail.



Splendid 4K Image Quality

Ultra HD output resolution and 13 megapixels display every subtle detail of topographical maps, chemical experiments, stereo models, and more. This clarity improves teaching quality and enhances student comprehension.



One-Push Recording, Capturing, and Playback

Intuitive recording and capturing enable users to record the complete teaching process with one button. Also, the playback function lets teachers review their lessons and examine student behavior to successfully prevent any accidents.



Massive A3 Shooting Area

A larger than A3-size shooting area captures items as big as building models. In addition, the position indicator on the camera head helps teachers always display materials accurately.

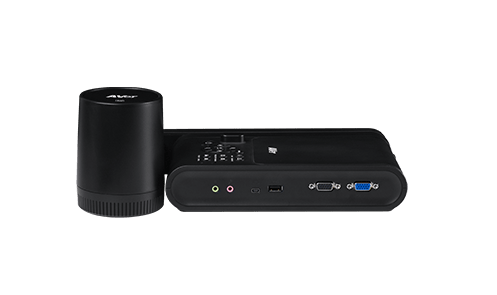

Multiple Ports Fit Any Device

With HDMI, VGA, and USB jacks available, users can connect the M90UHD to any display or computer and use the devices they’re most familiar with to teach.

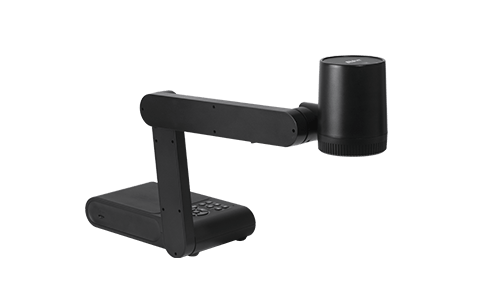

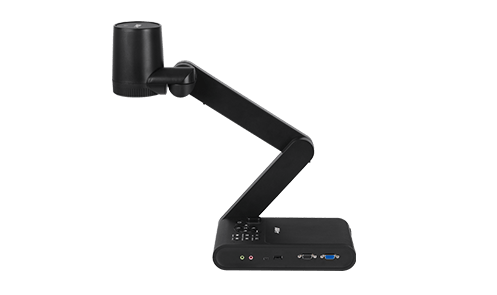

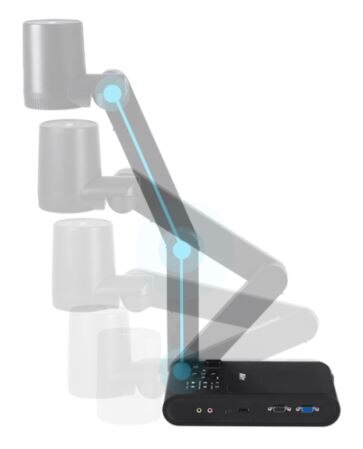

Super-Efficient Mechanical Arm

Featuring a low center of gravity and a fully adjustable, neatly foldable mechanical arm, the visualizer is easy to operate with only one hand and takes up minimal storage space.



Rapid Autofocus Banishes Blur

Some visualizers have a difficult time focusing on moving objects, but not this one. A single press of a button activates a premium-quality autofocus function that instantly clarifies the image and maintains students’ attention.

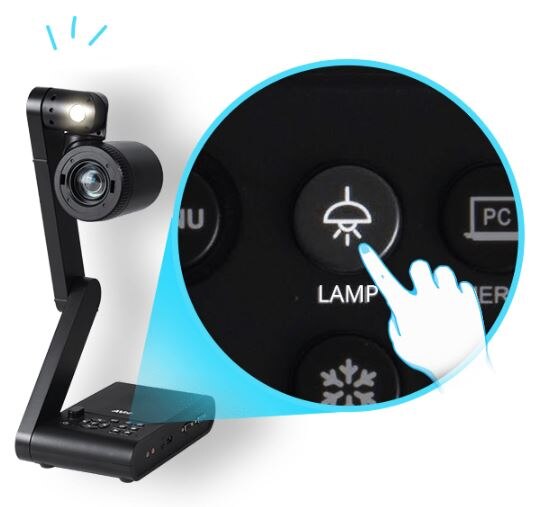

Embedded Light

The M90UHD offers an embedded light for adjusting luminance. Even in a dark presentation environment, teachers can easily provide a comfortable viewing experience.



AVerTouch Software

AVerTouch is ultra-powerful software designed exclusively for AVer visualizers. One touch connects your visualizer with mobile devices for content sharing, and you can sync to the cloud to automatically save annotated, captured, and recorded files. Teaching is incredibly fun when you use AVerTouch to engage with your students.


Specifications

Image Sensor                   1/3.06" CMOS
Total Pixels                       13 Megapixels
Output Resolution          4K
Full HD 1080p 60Hz        HD 720p 60Hz
TV Lines                            1,400
Zoom                                 322X
Total Zoom                       (14X Optical Zoom x 23X Digital Zoom)
Frame Rate                       60fps (max.)
Focus                                 Auto / Manual
Shooting Area                  A3 (420 x 315 mm max.)
Image Rotation                Electronic: 0°, 180°
Mechanical: 0°, 90°, 180° (Camera Head)
Internal Storage                             200 Pictures at XGA (1024 x 768)
External Storage              Micro SD Card & USB Thumb Drive (FAT32 / 32 GB)
One-touch Recording     Yes
One-touch Capturing     Yes
Capture Modes               Single / Continuous
User Profiles                    Yes, up to 3
Timer                                 Yes
Flicker Filter Control       Yes
ePTZ                                   Yes
Light Source                     Embedded LED Lamp
HDMI I/O                          1 in / 1 out
VGA I/O                            1 in / 1 out
USB 2.0 Ports                   Type-A x 1 (USB Thumb Drive)
Type Mini-B x 1 (PC)
Audio                                Line out (3.5 mm)
Mic in (3.5 mm)
Built-in Mic
HDMI
Security                                           Kensington Slot
Dimensions (W x D x H) Operating: 159.0 x 481.3 x 469.9 mm
Folded: 176.0 x 319.0 x 112.0 mm
Net Weight                       2.2 kg
Power Source                  DC 5V / 3A
AC 100 to 240V, 50 / 60Hz
Warranty                          Visualizer: 5 Years
Accessories: 1 Year
Software                           AVerTouch
Windows OS                    Windows® 7, 10, 11
Mac OS                             Mac® 10.15, 11, 12
Chrome™ OS                    Chrome™ OS 75 or Later
(Available via the Sphere Lite App Only)


Package Contents

• AVerVision M90UHD Unit
• USB Cable
• VGA Cable
• Power Cable
• Power Adapter (5V / 3A)
• Remote Control with AAA Batteries x 2
• Warranty Card
• Quick Start Guide
• CD

* Specifications may vary depending on location and are subject to change without notice.
