AVer CAM570 4K Dual lens PTZ Audio Tracking Camera** While Stocks Last **

AVer CAM570 4K Dual lens PTZ Audio Tracking Camera

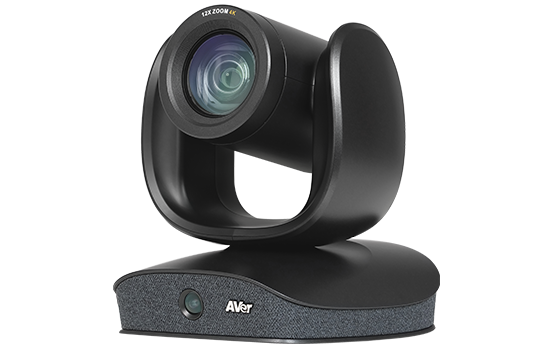

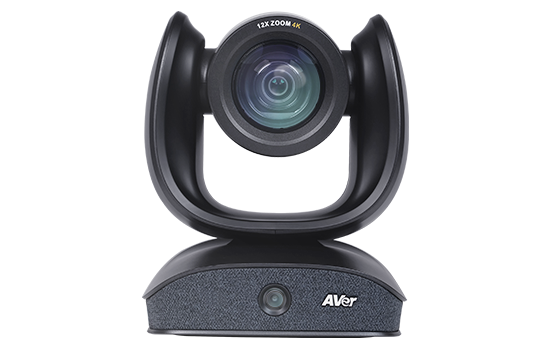

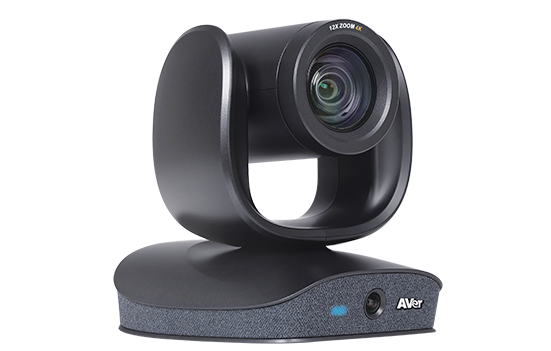

AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with a built in microphone, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendee up-close with premium video quality.


Built-in Microphone Enables Audio Tracking

Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built in microphone picks up human voices up to 10M without being disturbed by a local speaker.


Dynamic Framing Optimizes Meeting Experience

The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.


Smart Gallery Delivers a Clearer View of Faces

Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to
effective hybrid meetings.


Interact with CAM570 Using Touchless Gesture Control

With the application of AI to recognize gestures and interpret commands, you can turn on/off the tracking function and zoom in/out without any direct physical touch. Minimize the touch points and improve workplace hygiene.


Picture-in-Picture Displays Preferred Conference View

CAM570 includes a PTZ camera with 36X Total zoom and a second AI lens to provide a panoramic view. The dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options. Ideal for larger and more complex meeting spaces.


DUAL CAMERA

PTZ optical zoom lens

• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• 36X Zoom*: 12X optical; 3X digital zoom
• Wide field of view: DFOV 90°/ HFOV 82°/ VFOV 52°
• Lens focal length: 3.4mm (wide) ~ 40.3mm (tele)
• Lens F#: 1.8 (wide) ~ 3.6 (tele)
• Wide Dynamic Range (WDR): Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)

Secondary fixed lens (AI lens)

• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

Innovative features

• SmartSpeaker: automatically track human voice and focus on the speaker
• Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
• Presentation tracking: voice-triggered tracking speaker with both pre-set area and people tracking
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• HDMI Picture in Picture (PIP) function
• Smart gallery function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology (One RJ45 cable transfers IP streaming to USB.)
• 3rd party audio tracking support: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yahama) via AVer Preset Link function.

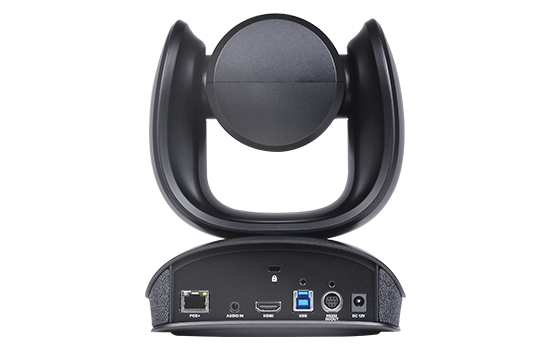

CONNECTIVITY

• USB type-B 3.1 connector, backward compatible with USB 2.0
• IP (RJ45)
• HDMI
• Audio line-in*
• 12V/2A DC jack power adapter
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)

MICROPHONE

• Voice pick-up range: 10m, ±60°
• 3 pairs of mic array, each composed of 4 mics

NB: The built-in mic is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software.

IN THE BOX

• CAM570 Camera Unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-B to type-A cable (3m)
• Remote control
• Mini DIN9 to mini DIN8 RS232 adapter cable
• HDMI cable (3 m)
• Wall mount bracket and screws
• Tripod screw & Drill paper
