HP POLY Studio X30 All In One Android Video Bar with TC8 Touch Controller.
Description
Description

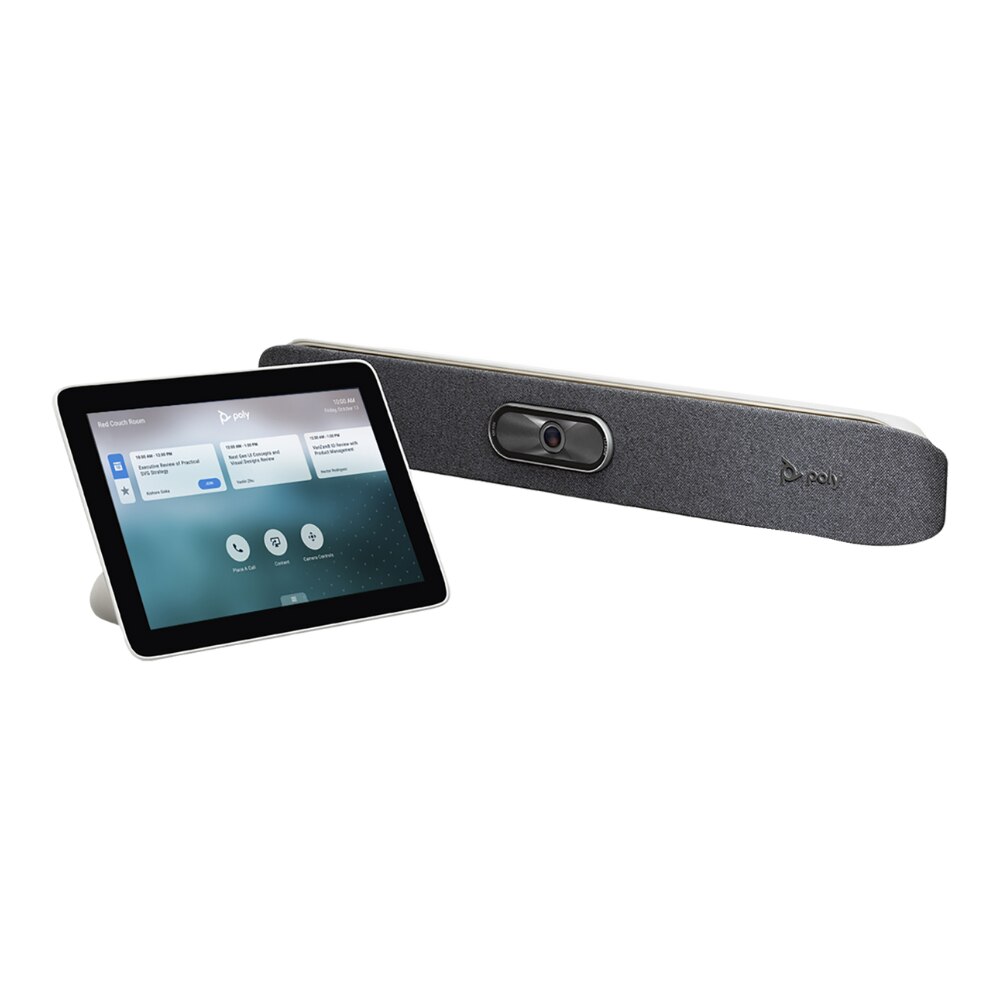

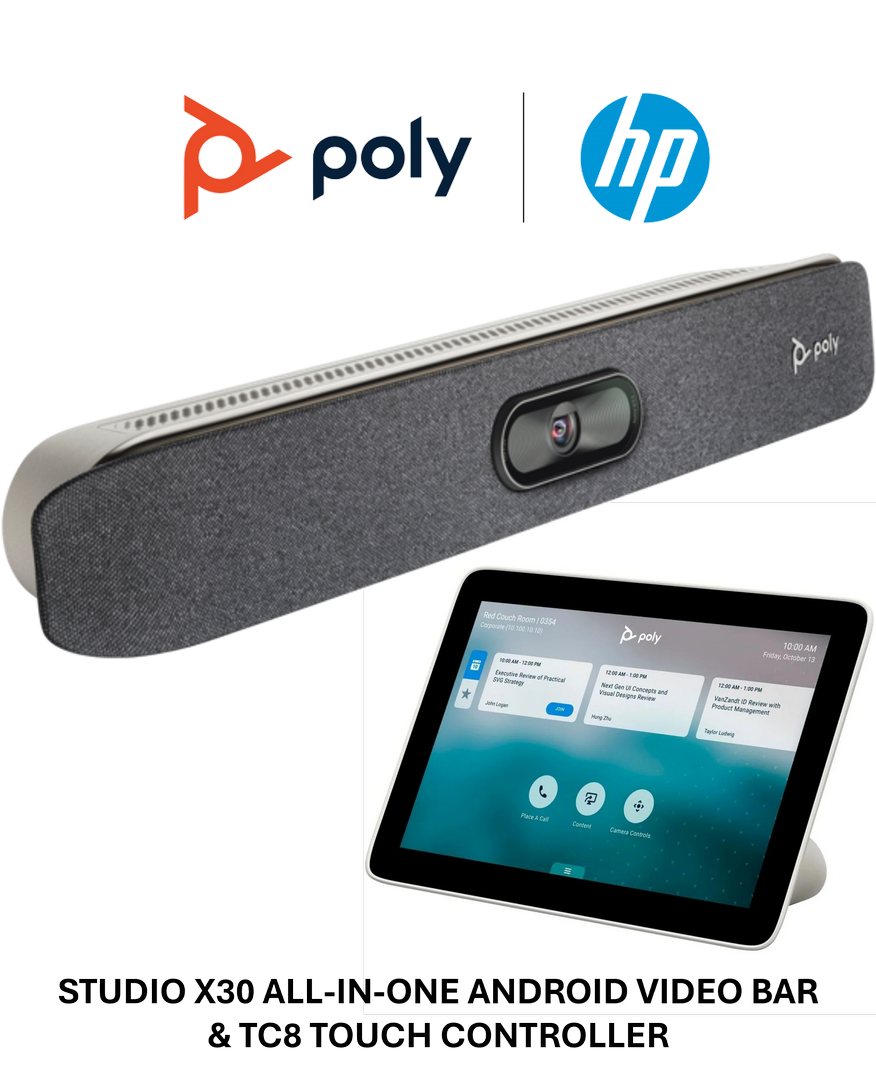

Poly Studio X30 All-In-One Video Bar with TC8 Controller Kit.
Meet the all-in-one video bar for small rooms. It’s simple to use with support for cloud video services built right in. Voices are clear with room-filling audio. Wireless content sharing lets users share from their devices easily.
Key Features
Simple set up
Get your small rooms up and running in moments. No PC required — support for cloud service platforms like Microsoft Teams and Zoom is built in. The compact design easily fits on top or underneath a display in rooms of up to six participants.
Pro-quality performance
Feel more connected to others on the call, thanks to smart camera framing. Block out audio distractions with Poly NoiseBlockAI technology, powered by machine learning. And easily share content over wired or wireless connections.
Specifications
| Audio | Poly NoiseBlockAI technology; Poly Acoustic Fence technology |
| Audio standards | 22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A |
| Camera resolution | 2160p, 4K UHD (3840 x 2160) |
| Camera type | Single-lens |
| Cartons per layer | 18 |
| Cartons per pallet | 180 |
| Certified collaboration software | Zoom; Microsoft Teams; Google Meet |
| Content sharing | Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input |
| Content video resolution (input) | UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600) |
| Content video resolution (output) | UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768) |
| Country of origin | Made in China or Taiwan |
| Diagonal field of view (dFoV) | 121° |
| Digital signage | Appspace; Raydiant |
| ECCN | 5A992 |
| Heat dissipation cooling | 65 BTU/h |
| Horizontal field of view (hFoV) | 110° |
| HTS code | 8517620090 |
| Interoperability | All cloud service providers through Poly Video App mode; USB Device mode; Support for native 3rd party applications including Zoom, Microsoft Teams, Dialpad, GoToRoom, RingCentral and StarLeaf |
| Lens cover capabilites | Attachable |
| Management Software | Poly Lens |
| Manufacturer product number | 2200-86260 |
| Manufacturer Warranty | Poly standard one-year limited warranty |
| Material Type for item | FERT |
| Microphone pickup range (metric) | Up to 4.57 m |
| Microphone type | Four MEMS microphones |
| Multiple order quantity | 180 |
| Network capabilities | IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP) |
| Non-Operating Humidity Range | 5 to 95% |
| Non-operating temperature - Celsius | -40 to 70 °C |
| Operating altitude | 4,877 m |
| Operating humidity range | 15 to 80% |
| Operating temperature range | 0 to 40 °C |
| Operating voltage | 37 VA @ 120 V @ 60 Hz; 37 VA @ 230 V @ 50/60 Hz |
| Pallet (layers) | 10 |
| Pallet dimensions (W x D x H) | 101.6 x 121.9 x 149 cm |
| Pallet weight | 357 kg |
| People video resolution | 4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 60 fps from 1740 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 60 fps from 832 Kbps; 720p, 30 fps from 512 Kbps |
| Physical security | Standard Kensington lock slot |
| Ports | 1 USB Type-C® 5Gbps signaling rate; 1 USB Type-A 5Gbps signaling rate; 1 HDMI-in 1.4 (video); 1 HDMI-out 1.4 (video) |
| Power supply type | External; Auto sensing |
| Products per pallet | 180 |
| Products per pallet layer | 18 |
| Registration required | No |
| Security management | AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; Local account password policy configuration; Security profiles; Local account and login port lockout; Secure defaults; Remote logging with support for TLS; Active directory external authentication; Binary Floor Control Protocol (BFCP) |
| Sensitivity (speaker) | 80 dB (1 W/1 m) |
| Smart camera technology | People framing; Group framing; DirectorAI perimeter; Speaker framing |
| Speaker output power | 1 x 3 W (RMS); 1 x 5 W (maximum) |
| Speaker type | Single speaker |
| UNSPSC code | 45111902 |
| UPC number | 197497448801 |
| Video frame rate | 5–60 fps (up to 4K resolution at 15 fps in call) |
| Video standards | H.264 AVC; H.264 High Profile; H.265; H.239 |
| What's in the box | Poly Studio X30; Ethernet cable; Monitor clamp; Privacy cover; AC power adapter; HDMI cable; TC8 controller; Power cable; CAT 5E LAN cable; Display mounting clamp |
| Wireless technologies | Wi-Fi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency; Bluetooth® 5.0 |
| Zoom capability | 5x digital |
