HP POLY 82Z84AA CCX 600 BUSINESS MEDIAPOE PHONE WITH HANDSET, MS TE AMS/SFB
Description
Description

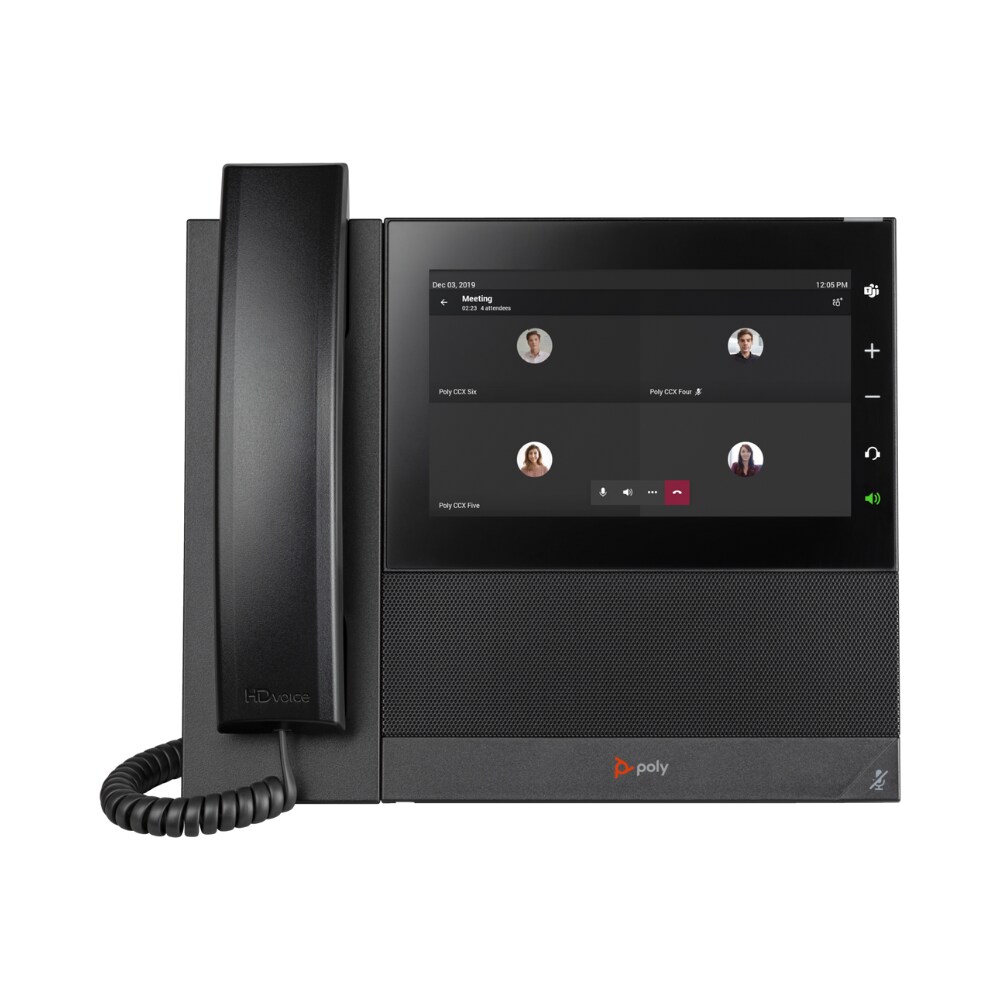

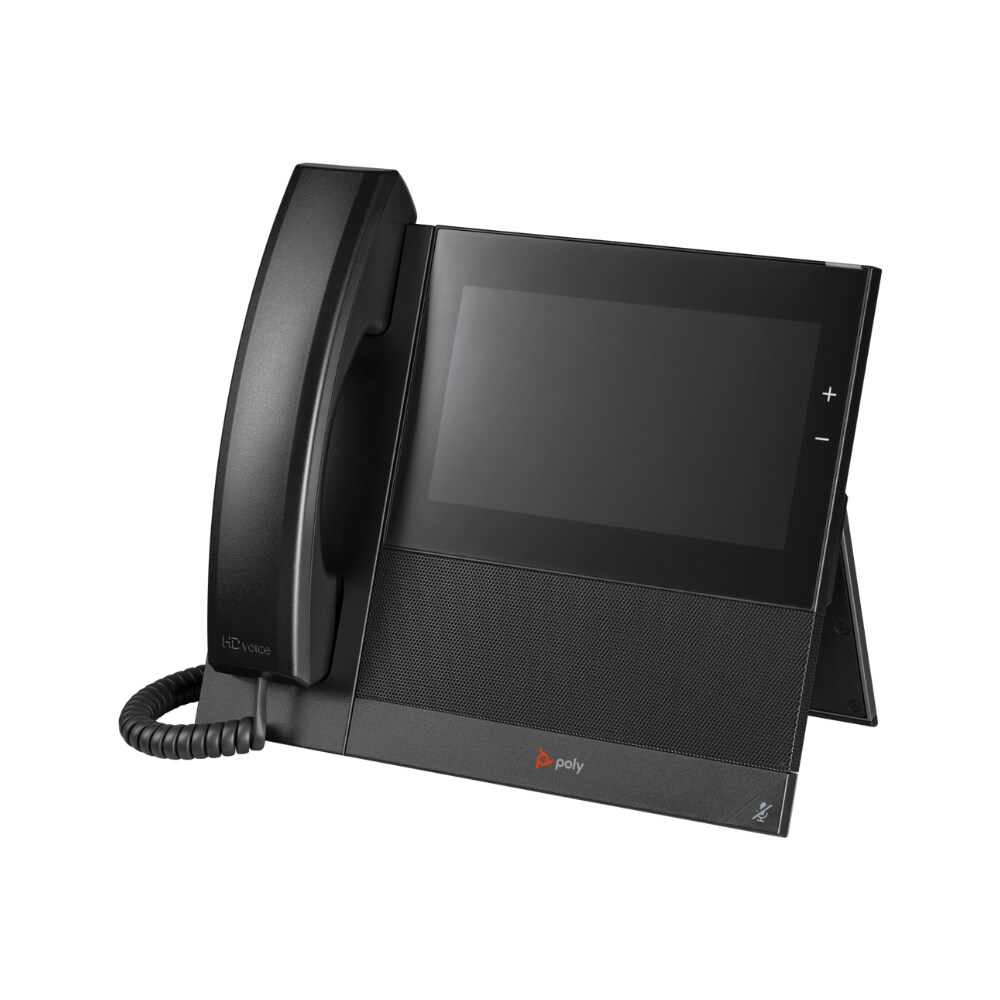

Poly CCX 600 Business Media Phone for Microsoft Teams and PoE-enabled
Get to work fast with the 7-in color multi-touch LCD display. And with the simple and intuitive interface, Bluetooth® connectivity, integrated Wi-Fi, and Poly quality audio you’re ready in a snap.
Command the conversationCommand the conversation
Hear every nuance with pro-grade audio plus Poly HD voice and Poly Acoustic Clarity technologies. Reduce distracting background noise with Poly Acoustic Fence technology.Hear every nuance with pro-grade audio plus Poly HD voice and Poly Acoustic Clarity technologies. Reduce distracting background noise with Poly Acoustic Fence technology.
Always ready, always easyAlways ready, always easy
With a simple, intuitive interface; ergonomic design; and large user touchscreen you get one-touch access to your contacts and meetings.With a simple, intuitive interface; ergonomic design; and large user touchscreen you get one-touch access to your contacts and meetings.
Specifications
| Aspect ratio | 16:9 |
| Audio | Poly HD Voice; Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression; Poly Acoustic Fence technology eliminates background noise when using a handset or wired headset; Poly NoiseBlockAI technology removes most background noise when using the speakerphone; TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex); Individual volume settings with visual feedback for each audio path; Voice activity detection; Comfort noise generation; DTMF tone generation (RFC 2833 and in-band); Low delay audio packet transmission; Adaptive jitter buffers |
| Audio codecs | G.711 (A-law and μ-law); G.722; G.722.1; G.729AB; iLBC; OPUS |
| Cartons per layer | 9 |
| Cartons per pallet | 54 |
| Certifications and compliances | Argentina ENACOM; AS/NZS 4268; AS/NZS 62368-1; Australia RCM; Brazil ANATEL; Canada ICES and NRTLC; Canada RSS 247 Issue2; China RoHS 2.0; CISPR32 Class B; EEA CE Mark; EN 301 489-1 and EN 301 489-3 and EN 301 489-17; EN 55024; EN 55032 Class B; EN 62368-1; ETSI EN 300 328 and ETSI EN 301 893; Eurasian Customs Union EAC; FCC Part 15 Class B; FCC Part 15.247 and FCC Part 15.407; IC ICES-003 Class B; IEC 60950-1 and IEC 62368-1; India WPC; Indonesia SDPPI; Israel MOC; Japan Article 2.1 Item 19-2 and 19-3; Japan MIC and VCCI; Malaysia SIRIM; Mexico IFETEL and NYCE; New Zealand Telepermit; Saudi Arabia CITC; Singapore IMDA; South Africa ICASA; South Korea KC; Taiwan NCC; UAE TRA; USA FCC and NRTL; UL 62368-1; VCCI Class B |
| Certified collaboration software | Microsoft Teams |
| Color | Black |
| Compatible Operating Systems | Android 12 |
| Country of origin | Made in China or Taiwan |
| Display features | On-screen virtual keyboard; Adjustable font size selection (regular, medium, large); Screensaver; Voicemail support; Normal and dark mode; Digital picture frame |
| Display size (diagonal) | 17.8 cm (7") |
| ECCN | 5A992 |
| Headset and handset compatibility | Bluetooth® headset compatibility; Compatible with commercially available TTY adapter equipment; Compliant with ADA Section 508 Subpart B 1194.23 (all); Hearing aid compatibility to ITU-TP.370 and TIA 504A standards; Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids; USB Type-A headset support; USB Type-C® headset support |
| Headset ports | 1 RJ-9; 1 Electronic Hook Switch (EHS) port for optional adapter |
| HTS code | 8517180020 |
| Management Software | Poly Lens; Poly Zero Touch Provisioning; Polycom Device Management Service for Service Providers (PDMS-SP) Cloud Management; Web UI to device IP address |
| Manufacturer product number | 2200-49780-019 |
| Manufacturer Warranty | Poly standard one-year limited warranty |
| Material Type for item | FERT |
| Multiple order quantity | 5 |
| Native resolution | 1024 x 600 |
| Network protocols, supported | FTP/TFTP/HTTP/HTTPS server-based central provisioning; Hardware diagnostics; Manual or dynamic host configuration protocol (DHCP) network setup; Network address translation support for static configuration and Keep-Alive; QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP; Status and statistics reporting; Syslog Event Logging; Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment; Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation; Time and date synchronization using SNTP; SIP signaling; RTCP and RTP support; IPv4; IPv6; Provisioning and call server redundancy support; DNS-SRV |
| Operating humidity range | 5 to 95% |
| Operating temperature range | 0 to 40°C |
| Package dimensions (W x D x H) | 26.3 x 21.7 x 6 cm |
| Package weight | 300 g |
| Pallet (layers) | 6 |
| Pallet dimensions (W x D x H) | 101.6 x 121.9 x 149 cm |
| Pallet weight | 357 kg |
| Panel technology | Color LCD |
| Ports | 1 USB 2.0 Type-A (for media and storage applications); 1 USB 2.0 Type-C® (for media and storage applications); 2 RJ-45 (10/100/1000BASE-TX Mbps) |
| Power | Built-in auto sensing IEEE 802.3at Power over Ethernet (Class 4); 25 W (maximum) |
| Products per pallet | 270 |
| Products per pallet layer | 45 |
| Registration required | No |
| Security management | 802.1X Authentication and EAPOL Media encryption via SRTP; Digest authentication; HTTPS secure provisioning; Password login; Support for signed software executables; Support for URL syntax with password; Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2) |
| Special features | Adjustable base height; Unicode UTF-8 character support |
| Storage temperature range | -40 to 70°C |
| Telephony and call handling features | Busy Lamp Field (BLF); Call timer and call waiting; Caller ID enable/disable; Distinctive incoming call treatment/call waiting; Do not disturb function; One-touch speed dial, redial; Shared call/bridged line appearance; Automatic off-hook call placement (hot dialing); Call media recording/playback; Automatic/remote answer on headset using electronic hook-switch; Call hold/resume, diversion (forward), transfer (consultation, blind), pickup; Calling, called, connected party identification; Call forward for shared lines; Private hold for shared lines; Call logs (missed, received, placed); Local contact directory; Create local contact from call log; Corporate directory; Call server redundancy (failover); SBC line registration; Conference bridging; Local call forwarding (all, busy, no answer) with destination shown on idle display; Automatic call distribution (ACD); Automatic answer (intercom); Call park/retrieve; Directed call pickup; Group call pickup; Hunt group - sequential calling; Last call return; Auto-answer a page with a muted microphone; PTT and Multicast group; Exchange Calendar Integration; Flexible line keys; Key system emulation; STIR/SHAKEN Caller ID validation; Voice Quality Monitoring (VQMon) |
| Touch-enabled | Gesture-based, multi-touch capable touchscreen |
| UNSPSC code | 43191508 |
| VoIP features | 24 lines (SIP registrations); IETF SIP (RFC 3261 and companion RFCs) |
| What's in the box | Console; Desk stand; Handset with handset cord; Network (LAN) cable-CAT-5E; Setup sheet |
| Wireless technologies | Bluetooth® 4.2; Wi-Fi network connectivity: 2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT-20); 5.15-5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40) |
